138mm Double & Triple Diopter Trays
Choose options
Get the highlights
Choose the Double Tray for compatible 138mm diopters up to +2, or the Triple Tray for up to +3. Both feature metal construction, a locking screw, a safety latch, and 1/4-20 accessory mounting points.
Double Tray holds up to +2 diopters.

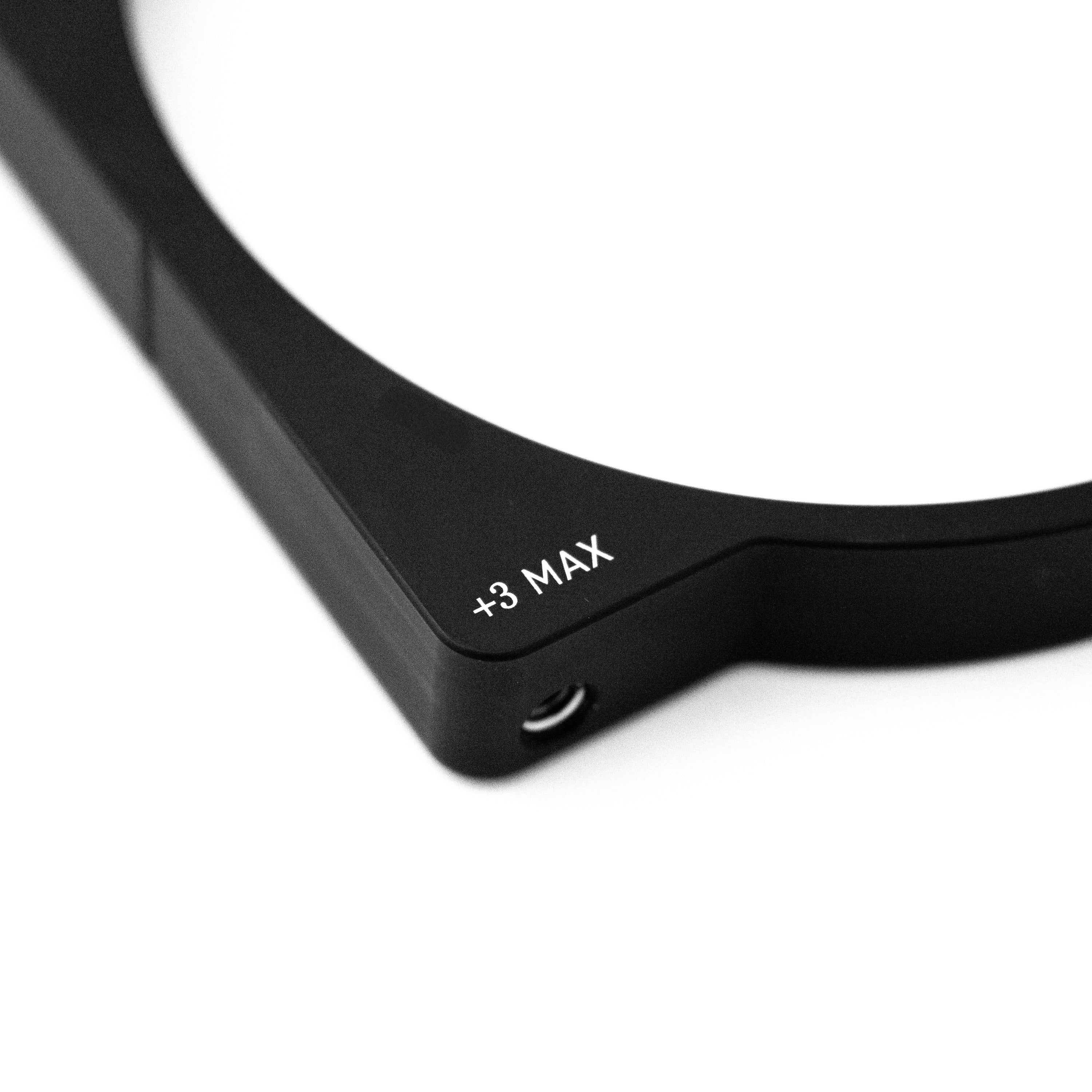

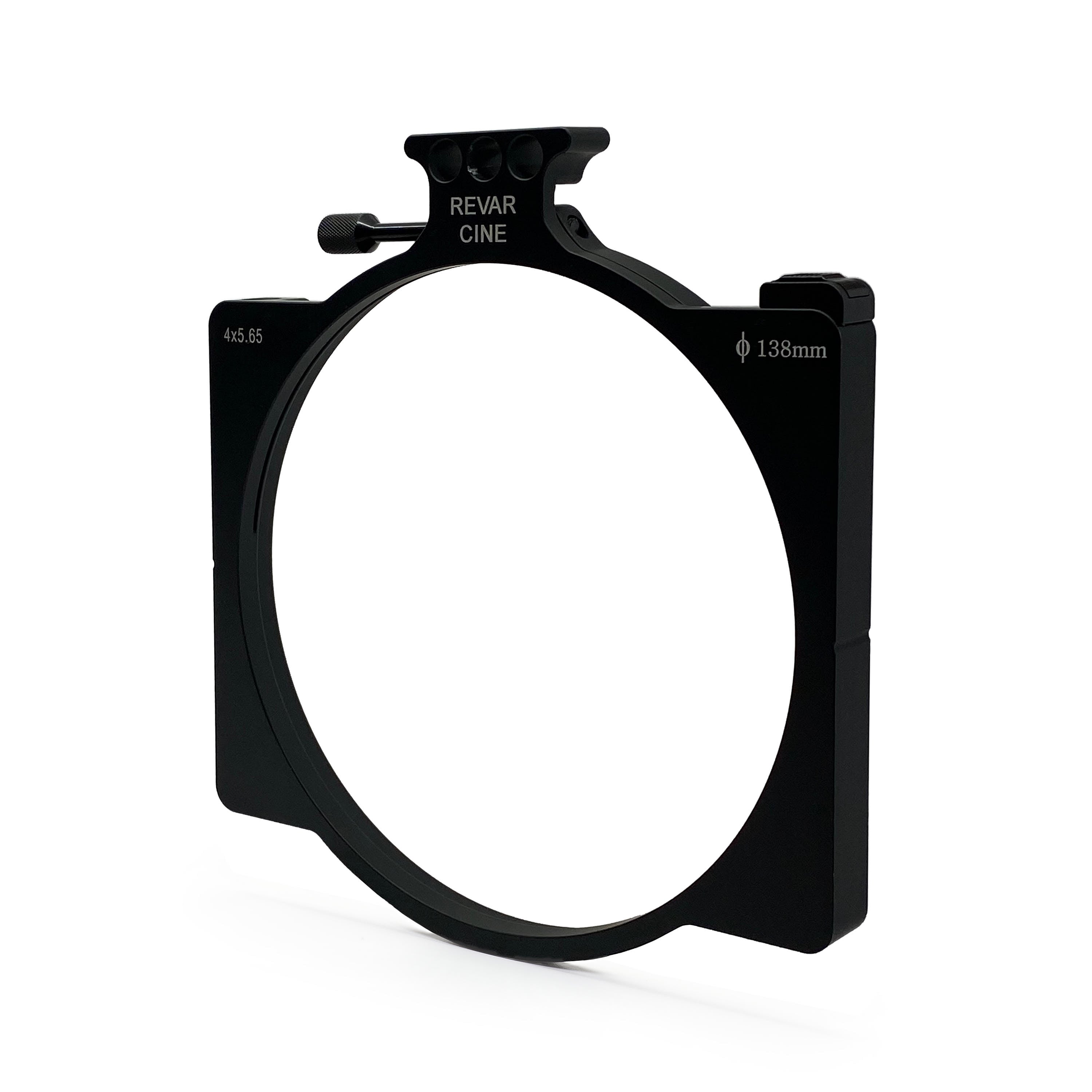

Triple Tray holds up to +3 diopters.
Durable lightweight design with strategic cut outs to reduce weight.
1/4-20 threaded mounting for mounting accessories including Noga arms
Secure clamping with extra large set screw to ensure a tight fit.
Safety latch to ensure your tray doesn’t drop out the bottom of the matte box.
Frequently Asked Questions
The Double Tray holds up to a +2 diopter. The Triple Tray is required for a +3 diopter.
The Double Tray requires a matte box that uses Arri standard width trays with no dividers between the stages. Simply pull two consecutive trays and drop in the Double Tray.
The Triple Tray requires three stages.
Compatible matte box models include Arri LMB4x5, Bright Tangerine Kick and Tilta T12.
If your Double Tray isn't dropping in smoothly, it may be necessary to adjust the back plate tension to allow the tray to drop in. The Double Tray is slightly thicker than a standard tray so the back plate may need adjustment.
