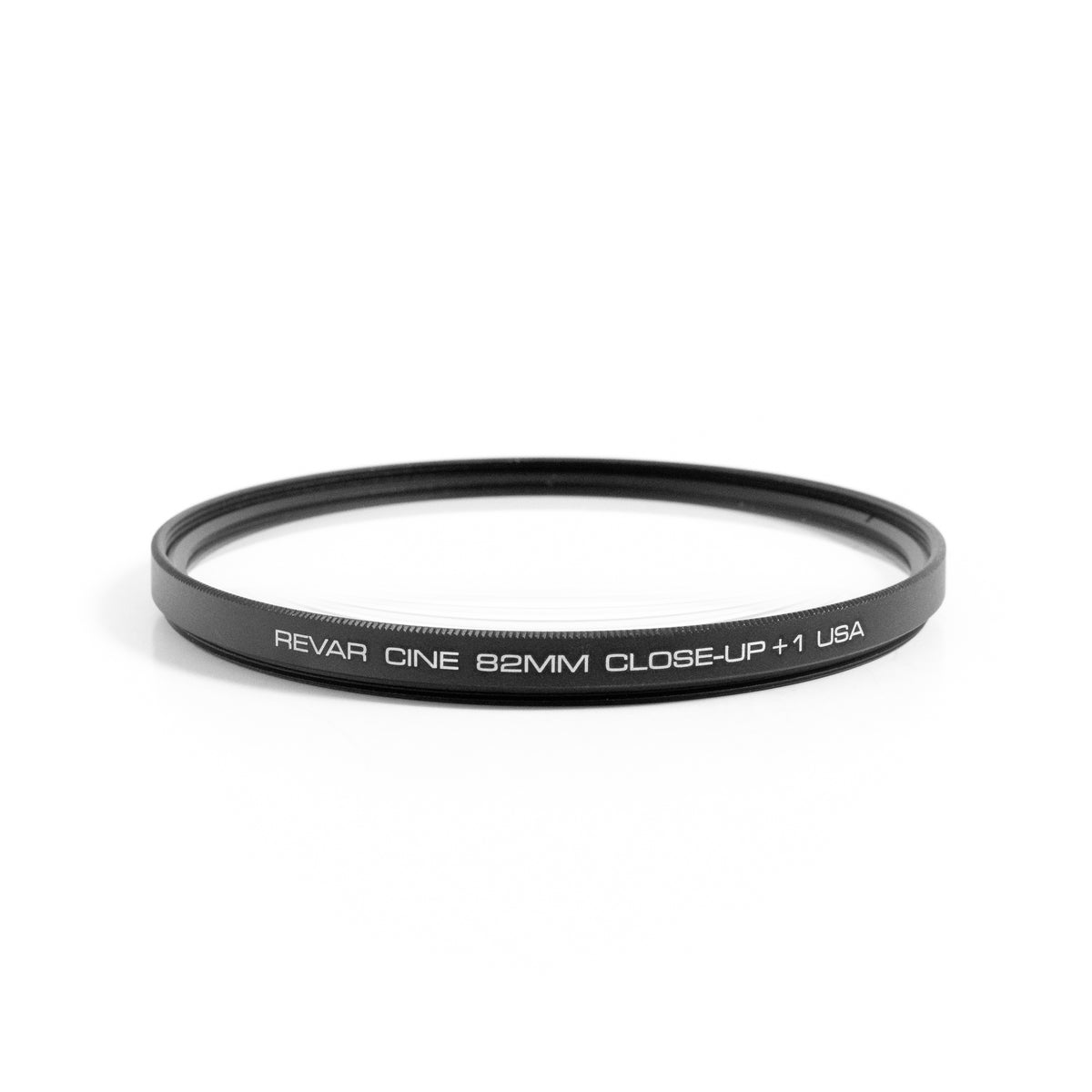

Get closer to your subject without sacrificing optical performance. The Revar Cine 82mm Screw-In Close-Up Diopter greatly improves your lens’s close-focus capability, opening up tighter framing and detailed close-ups with spherical and anamorphic lenses.

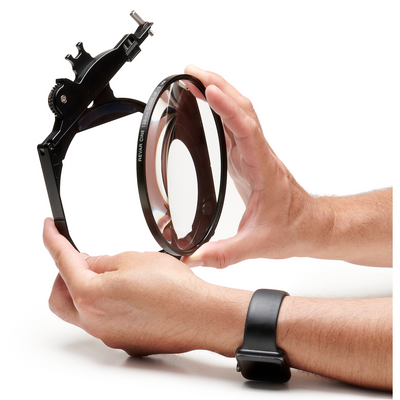

Made with the same professional-quality optical glass as our 138mm cinema diopters, the 82mm version brings that quality to today’s more compact cinema and photography setups. Precision-polished Schott B270 glass and broadband anti-reflective coatings deliver significantly higher optical quality than inexpensive close-up diopters.

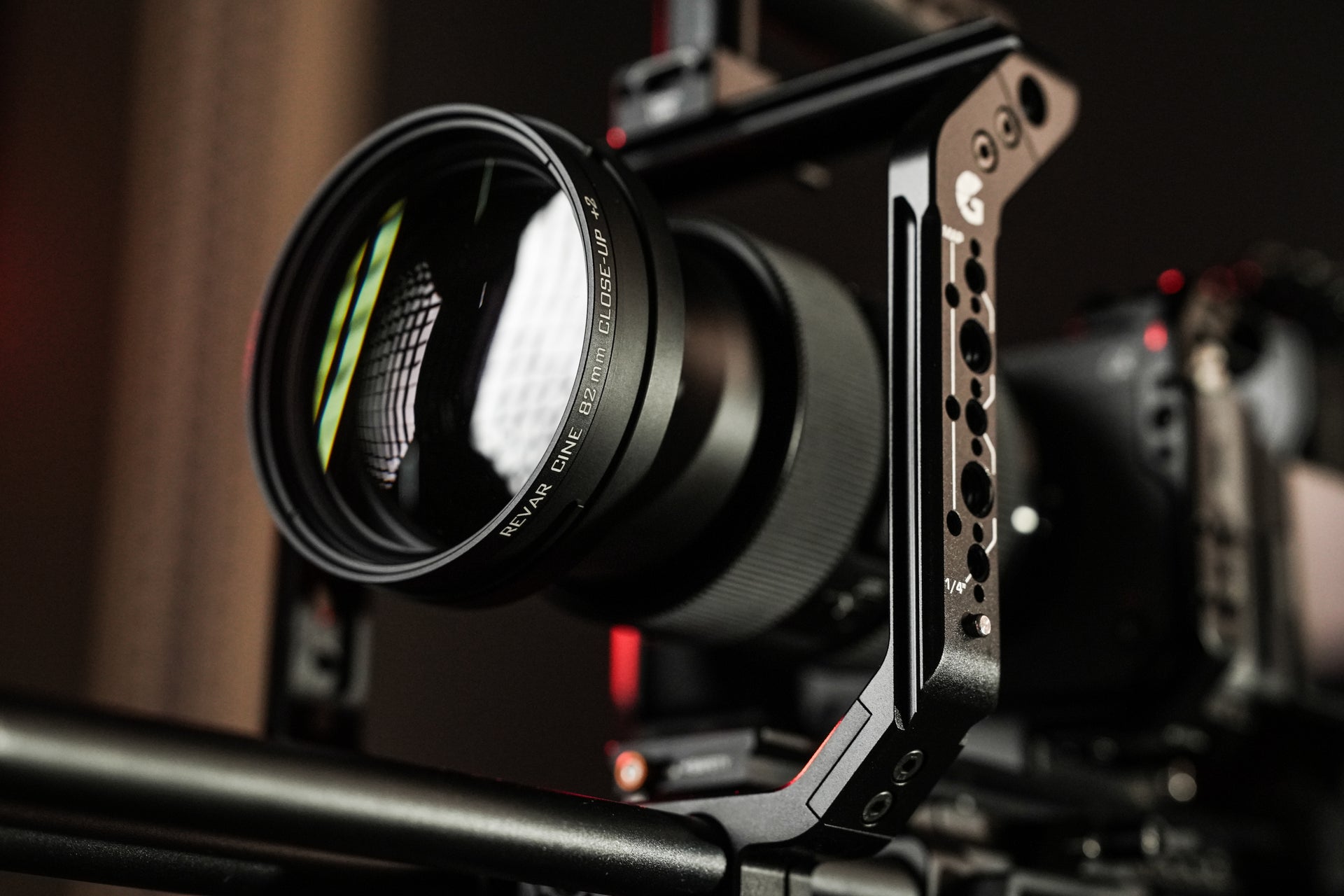

Screw it directly onto a lens with standard 82mm front filter threads, or use a step-up ring to fit lenses with smaller filter threads.

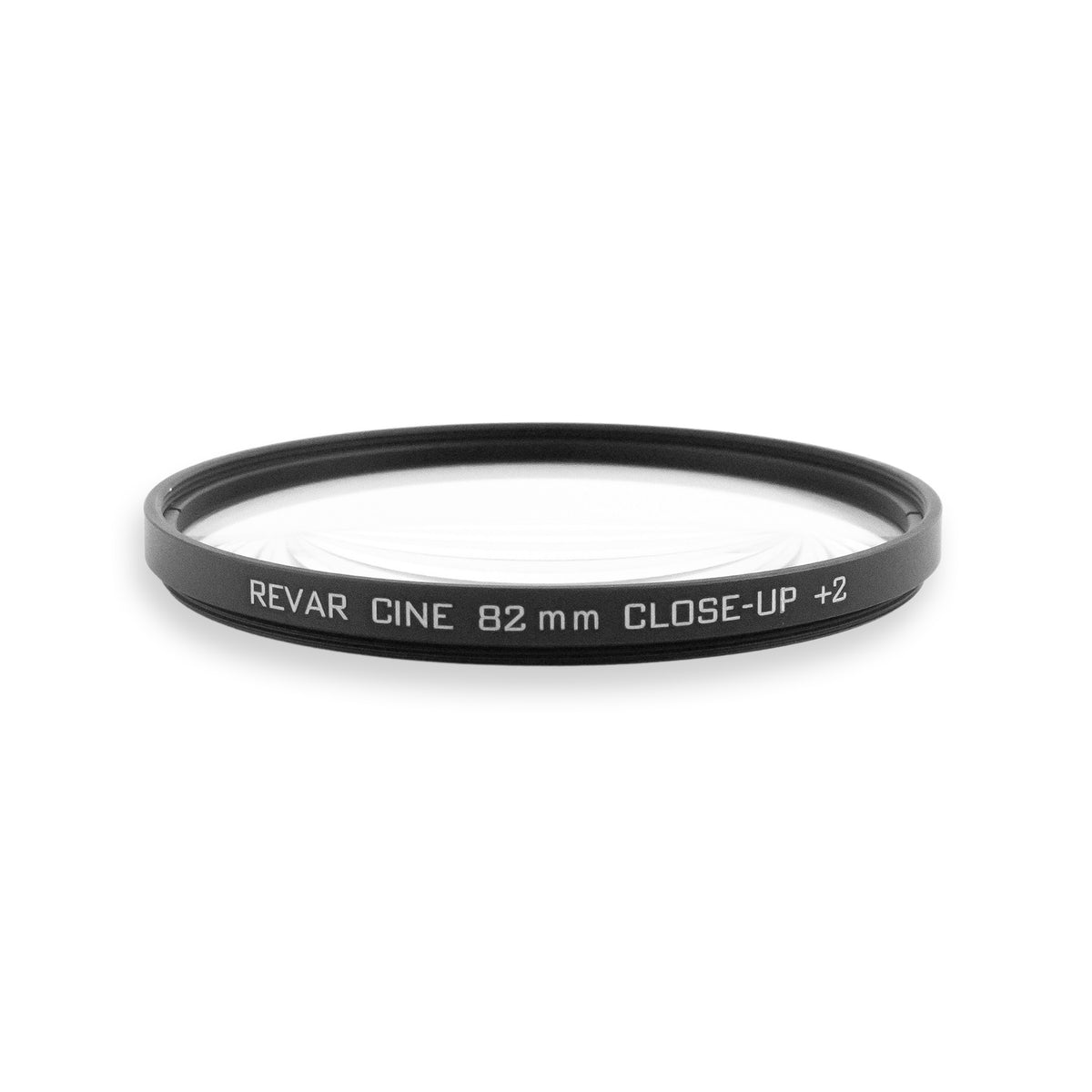

A full diopter prevents your lens from focusing at infinity while it is attached. For example, a +2 diopter brings a lens set to infinity into focus at approximately 0.5 meter from the diopter.

Turning your lens toward its minimum focus setting brings focus closer still, greatly improving close-focus capability. The actual minimum focus distance varies with your lens’s native close-focus ability and optical design. Because lens focus distances are generally measured from the camera’s sensor plane, the distance between the front-mounted diopter and the sensor also affects the focus distance measured from the camera. These figures are a starting point; check focus with your specific lens and camera setup.

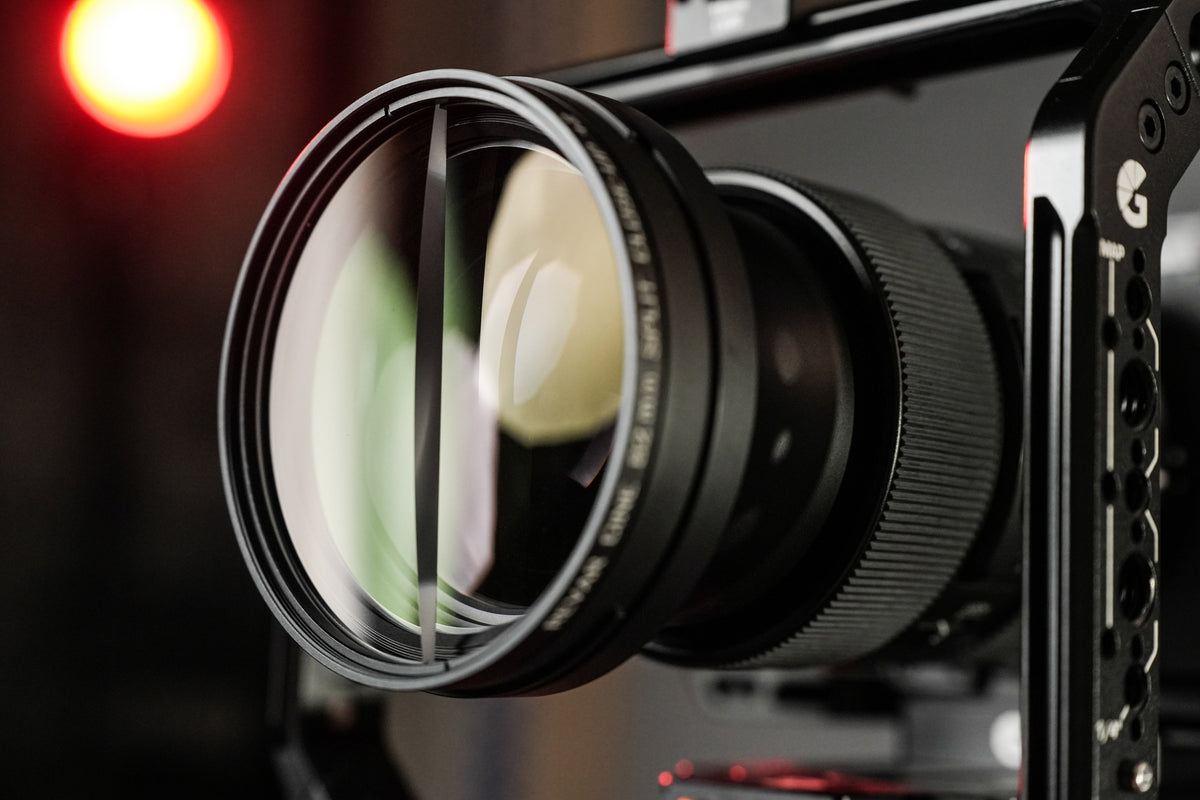

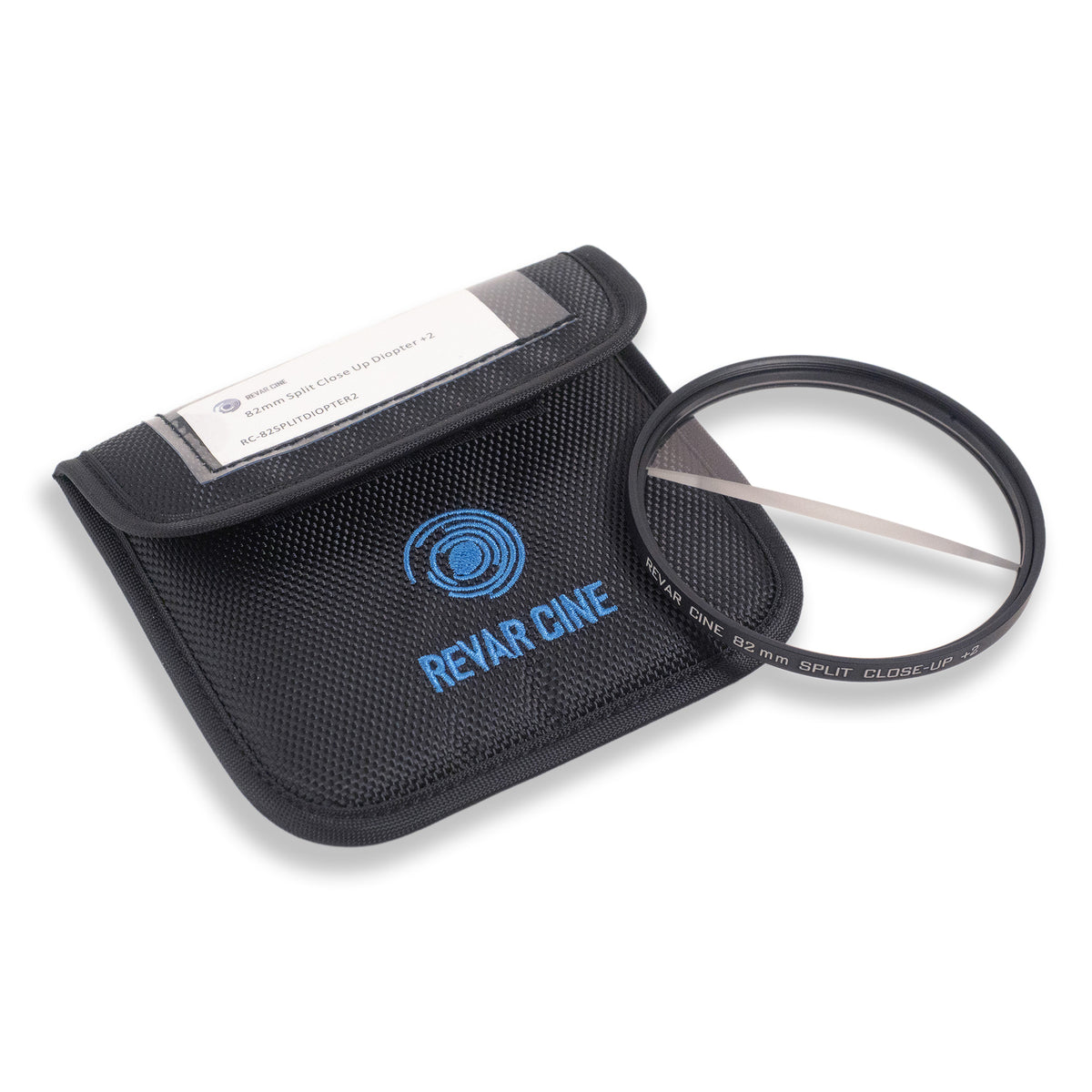

82mm +2 Split Diopter

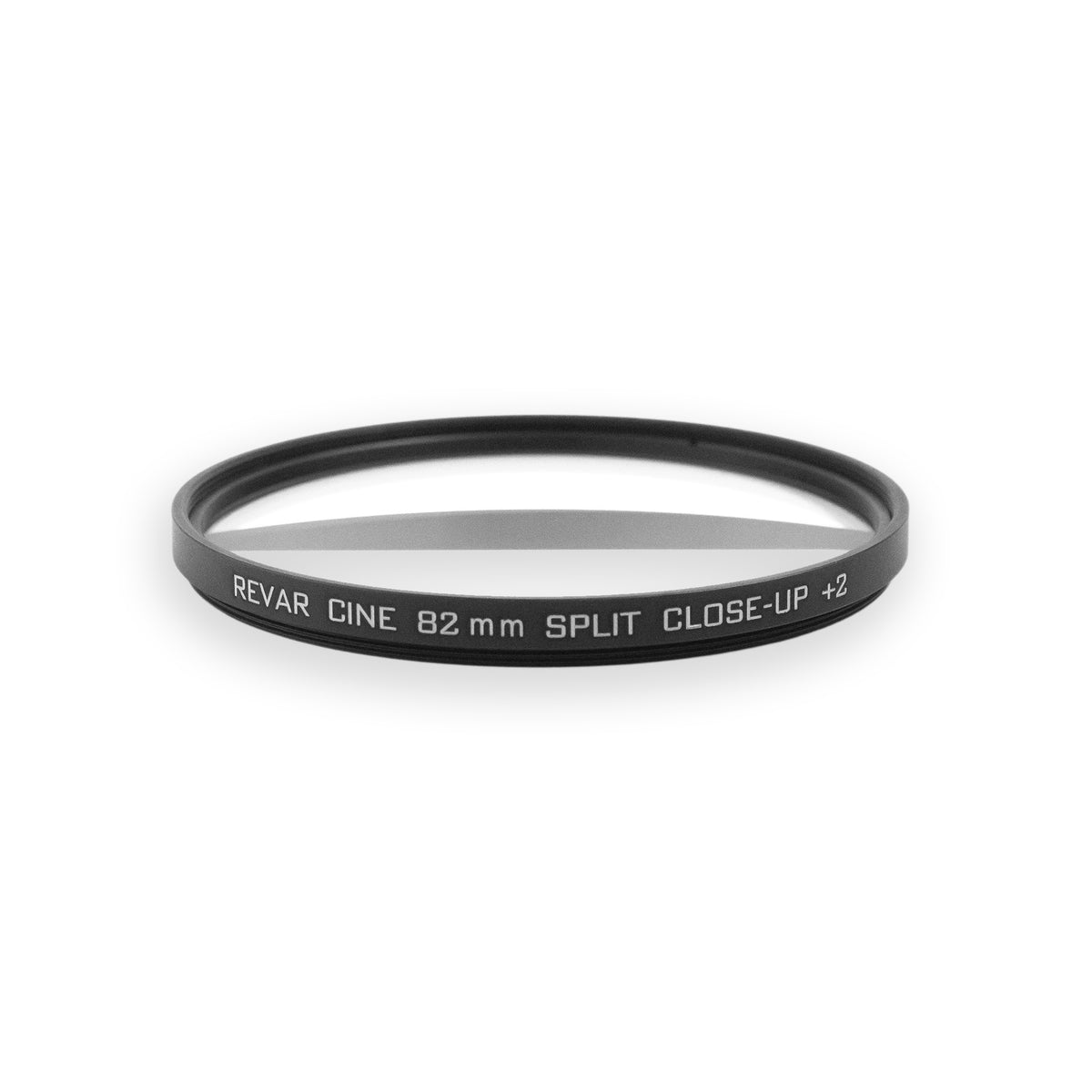

The Revar Cine 82mm +2 Screw-In Split Diopter places close-up glass over one half of the opening while leaving the other half unobstructed. This allows you to bring a foreground subject into focus through the diopter while retaining your lens’s normal focus range—including infinity—through the uncovered half.

Unlike a full diopter, the split version creates two distinct focus zones within the same image. It is a creative tool for compositions that keep a nearby subject and a distant subject sharp simultaneously, without relying solely on stopping down the lens.

Available Sizes:

• 82mm Screw-In Thread
• Use any step-down rings to go to smaller sizes

Glass Type:

• Precision Schott B270 Optical Glass

Coating:

• Broadband Anti-Reflective Coating


Available Strengths:

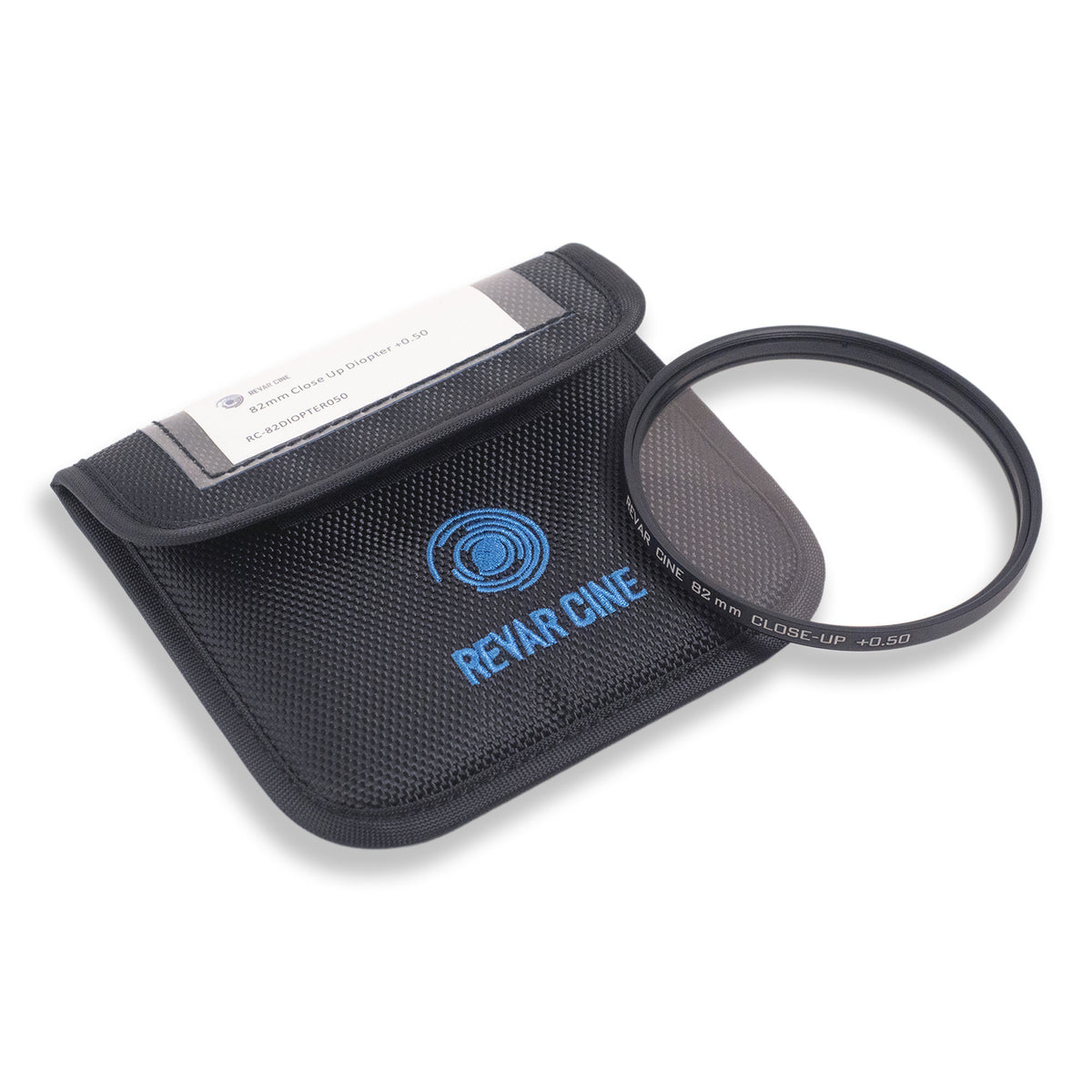

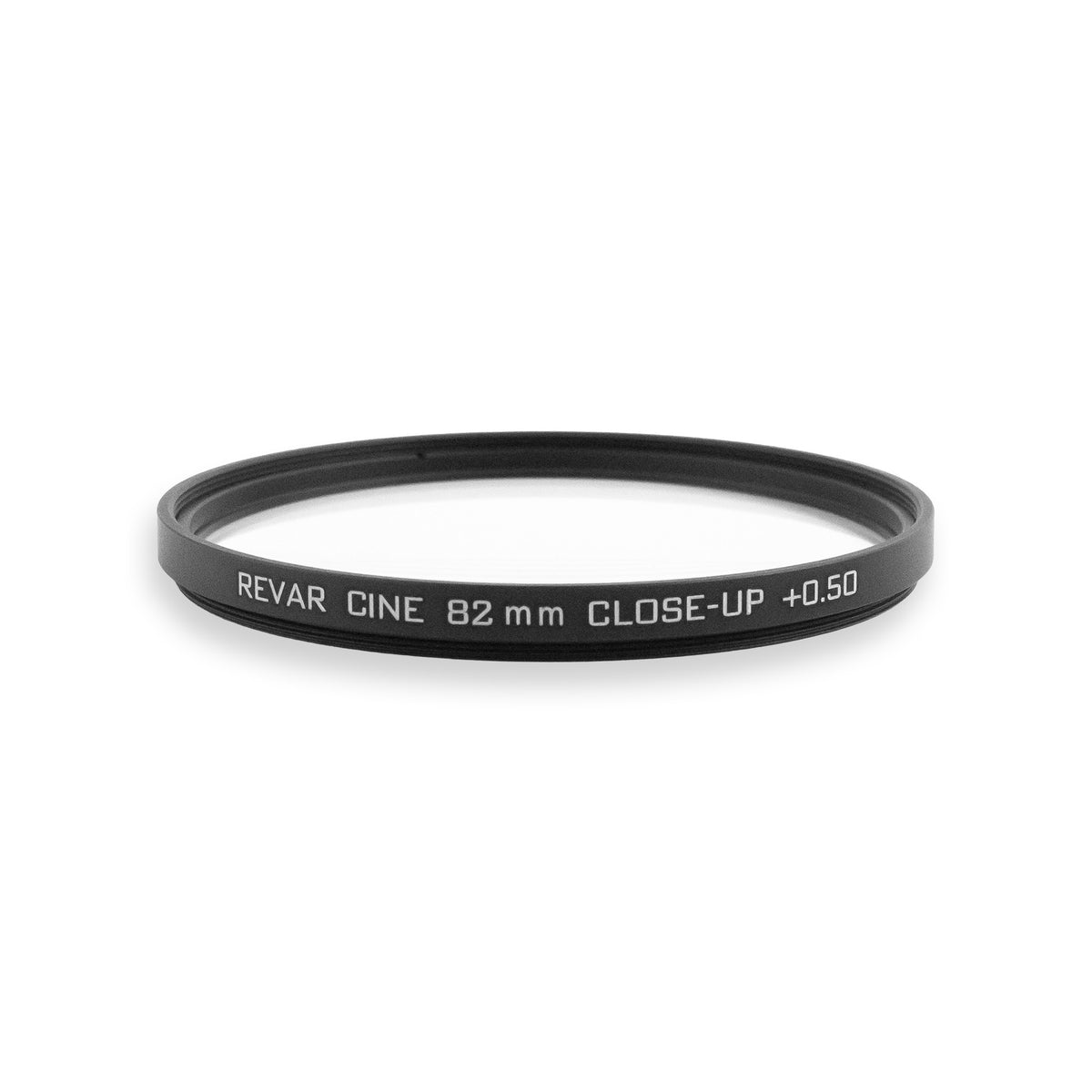

• +0.50

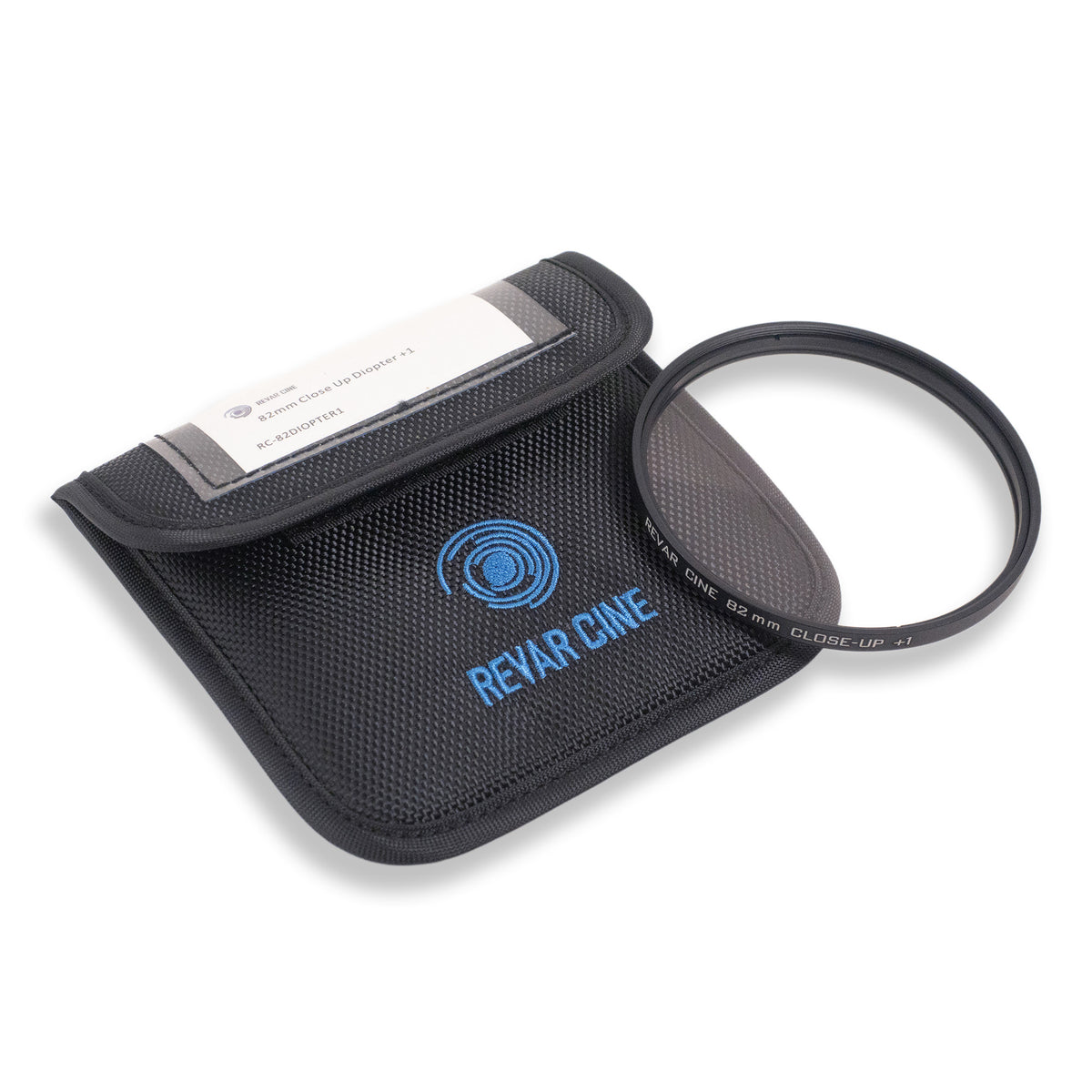

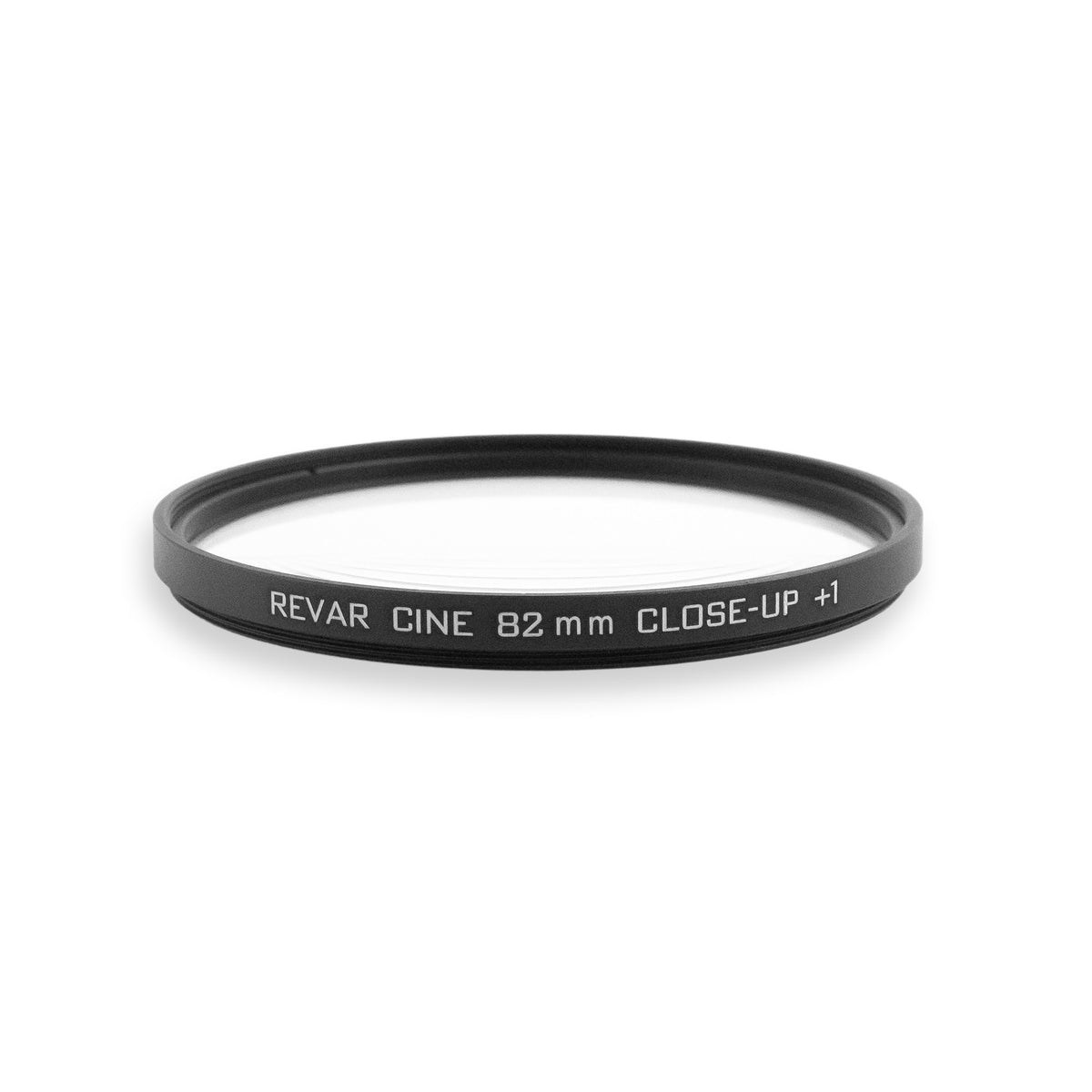

• +1

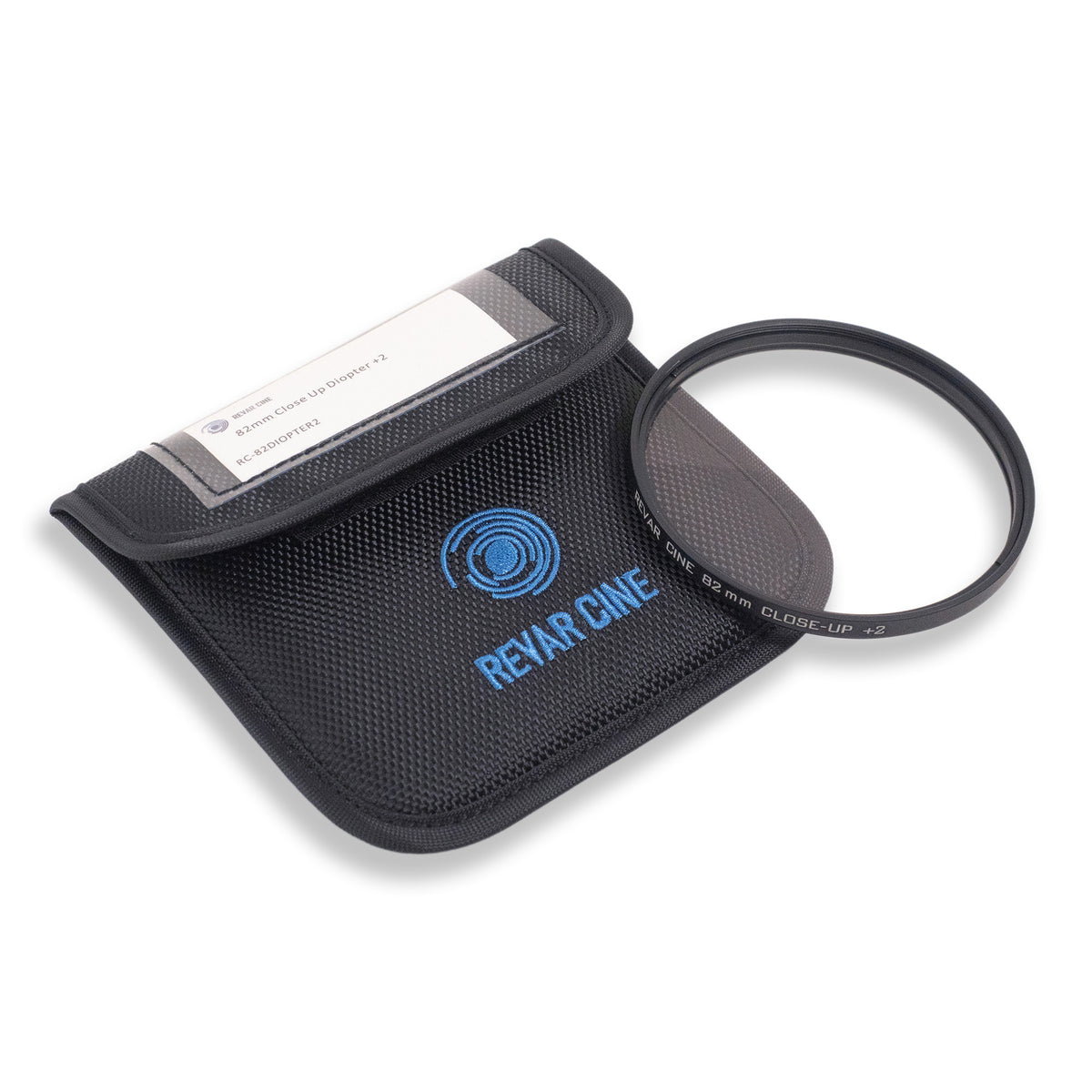

• +2
• +2 Split

Key Features

• Closer Focus: Capture tighter shots and fine details beyond your lens’s native close-focus capability.

• Professional Optical Glass: Precision-polished Schott B270 glass provides the same glass quality as our 138mm cinema diopters in a compact screw-in format.

• Broadband Anti-Reflective Coatings: Help minimize unwanted reflections and preserve image contrast and color fidelity.

• Ideal for Anamorphic Lenses: Expand close-focus options for lenses with long minimum focus distances.

• Direct Lens Mounting: Fits standard 82mm front filter threads without requiring a matte box or separate filter tray.

• Adaptable to Smaller Lenses: Compatible with smaller filter-thread sizes using an appropriately sized step-up ring.

• Matte box integration: Use the 85mm outside diameter of the 82mm diopter ring to clamp onto matte boxes with 85mm adapter plates.

• Full and Split Options: Choose a full diopter for close-ups across the frame or the +2 split diopter for compositions combining near and distant subjects.
