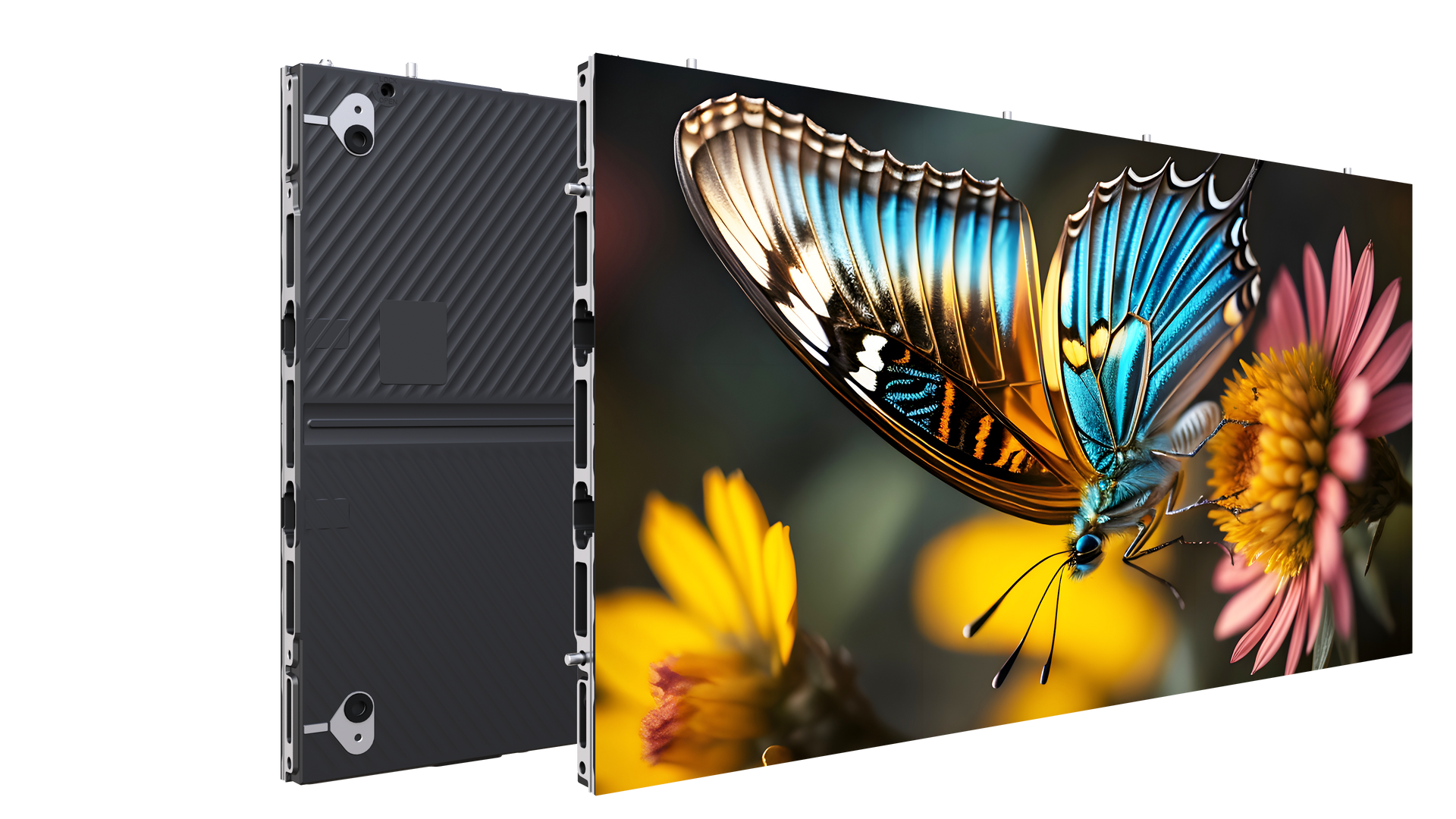

T Pro Panel
The T Pro Panel is ideal for fixed indoor installations requiring long-term
reliability and creative flexibility. Available in square, rectangular, and
quarter-circle formats, it enables versatile screen designs with efficient
wall-mounted or freestanding installation options.
Modular Panels available in square, rectangle and corner radius. Customize to your space.
Complete control with Brompton processor color management and industry standard inputs.
1.5mm, 1.9mm, 2.6mm and 3.9mm pixel sizes for close and greater distance viewing applications. Choose 2.6mm or 3.9mm for large displays. Choose 1.5mm or 1.9mm for 4K content at close viewing range.
Wall or floor mount for maximum mounting options. Wall mount features interlocking system with simple mounting bar. Floor mount features a frame for direct placement on a flat surface.
1.5mm pixel Chip-on-board (COB) offers industry leading durability, high contrast, close viewing angle and dust prevention..
1.9mm+ pixel sizes feature SMD/HOB copper boards for cost savings while maintaining brightness and resolution performance.
T Pro Panel Specifications
| Model | LED Chip Type | Application | Durability |
|---|---|---|---|
| 1.5mm | COB | Close Viewing | Maximum |
| 1.9mm | HOB SMD | Close to Mid Range | Good |
| 2.6mm | HOB SMD | Mid Range | Good |
| 3.9mm | HOB SMD | Long Distance | Good |

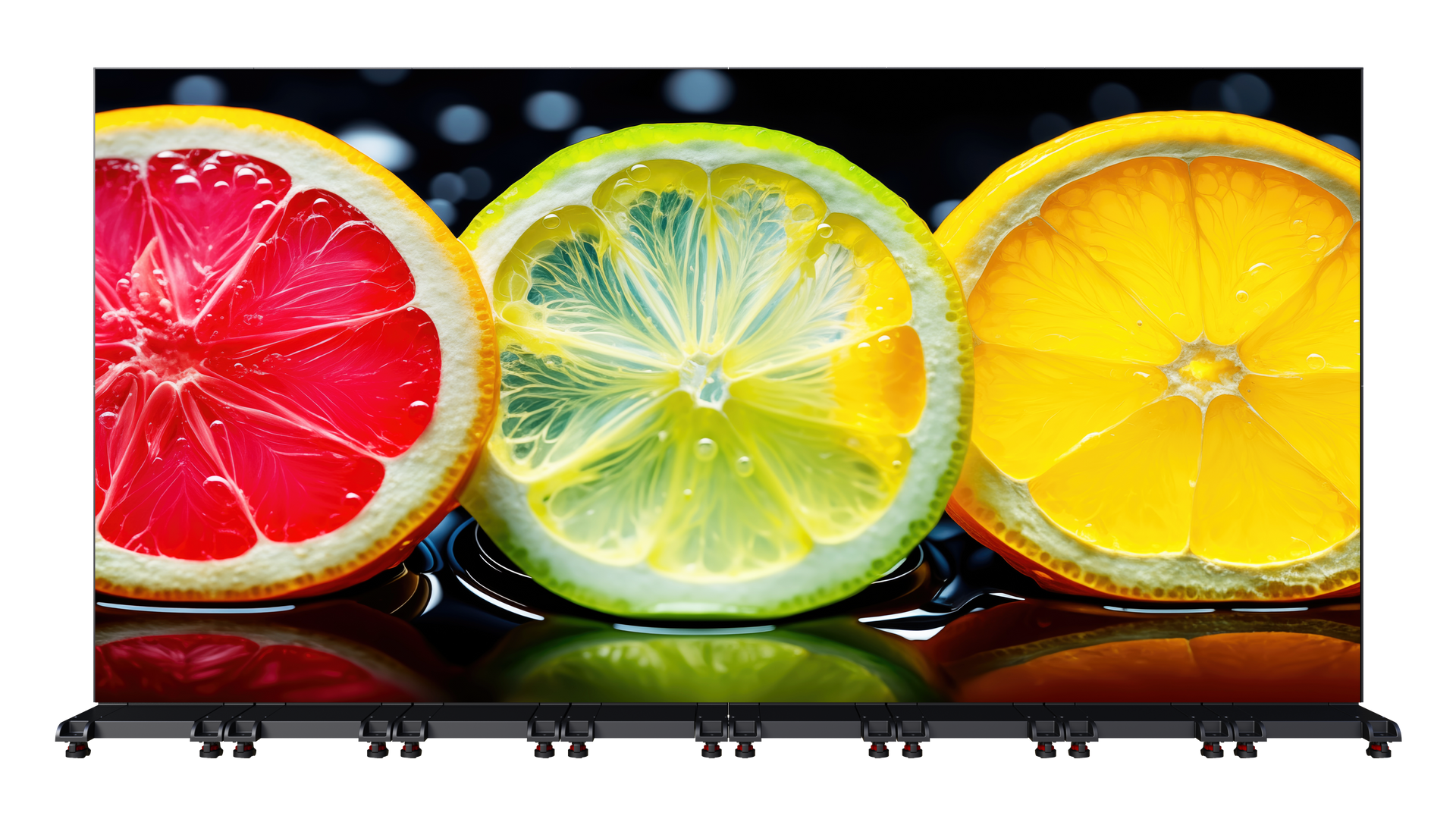

T Pro Poster
The T Pro Poster offers a mobile, high-impact indoor LED solution for retail, corporate, hospitality, and event environments. Designed with a rolling cabinet form factor, it enables effortless mobility and quick deployment across dynamic spaces. Built for maximum durability and equipped with industry-leading features, it delivers reliable performance alongside vibrant, eye-catching visuals. Ideal for flexible digital signage, the T Pro Poster combines ease of use with professional-grade display quality.
Modular rolling cabinet design allows for single poster or connecting multiple posters for a rolling wall design.
LTE Cloud Control allows for display of one image on a single poster, multiple images on one poster or single image across all posters.
1.5mm pixel Chip-on-board (COB) offers industry leading durability, high contrast, close viewing angle and dust prevention.
Hybrid-on-board (HOB) Copper LED options for cost effective feature to benefit ratio.
Brompton control with advanced LED processing capabilities such as precise color calibration, HDR support, dynamic brightness control, and enhanced image uniformity.
1.9mm+ pixel sizes feature SMD/HOB copper boards for cost savings while maintaining brightness and resolution performance.
Panel Specifications
| Model | LED Chip Type | Application | Durability |
|---|---|---|---|
| 1.5mm | COB | Close Viewing | Maximum |
| 1.9mm | HOB SMD | Close to Mid Range | Good |
| 2.6mm | HOB SMD | Mid Range | Good |
Frequently Asked Questions
Chip-On-Board (COB) is the latest in LED type technology where the LED chip is bonded with copper directly to the board. This greatly reduces possible impact damage while maximizing contrast, and brightness.
Surface-mounted device (SMD) LEDs combine red, green, and blue diodes into a single compact package allowing for improved performance over standard LED technology.
HOB is Hybrid-On-Board (HOB) is a combination of copper bonding and SMD technology allowing for increased brightness for longer viewing distances.
T Pro Panels require a Brompton or Novastar LED controller which is a separately sold product to take the computer or player signal and display it on the LED screen.
T Pro Poster requires a single Brompton controller allowing with cloud-based LTE signals where content can be displayed on a single poster, the same image on multiple posters, or a single image cut across multiple posters for immersive content.
The 1.5mm pixel size is the premium solution allowing both close and long range viewing distances (3 to 20+ feet) of 4K quality content.
1.9mm features HOB technology allowing for medium range viewing (8-20 feet) but not long range brightness.
2.6mm and 3.9mm allow for maximum brightness for long range viewing for 20+ feet distance.
