Alpha Panel Kits
Fabulux Alpha panels are purpose-built for high-end virtual production, delivering ultra-fine pixel pitch, exceptional color accuracy, and seamless on-camera performance for immersive, photo real environments. With support for up to 240 frames per second, they ensure flicker-free capture for high-speed filming, while thermal adaptive technology maintains consistent performance during long shoots. Exceptional black levels and refined grayscale reproduction add true depth and cinematic realism, and panels support up to 6 degrees of curvature for flexible stage design.
Built for the demands of production, Alpha panels offer durable construction with up to 14kg impact resistance. Fabulux virtual production kits further streamline deployment by providing hardware kits alongside clearly defined system requirements, outlining the necessary components from trusted third-party vendors. Available in floor-mounted or hanging truss configurations, these solutions make advanced virtual production more accessible, scalable, and production-ready than ever.
Built to last with high quality anodized aluminum frame.
Complete control with dual 0.8 mod gears for fast rotation in any camera configuration including remote with a focus motor
A military-spec circular polarizer engineered for premium performance— delivering efficiency and coatings well beyond common options like the Schneider True-Pol or Tiffen Ultra Pol.
Extra Large 138mm filterallows for use of wide angle lenses for maximum compatibility.
Dual wheel control lets you adjust with a simple touch—just drop the 4x5.65 tray into your matte box and spin from either side of the camera. For advanced setups, the built-in 0.8 gears connect effortlessly to a focus motor for smooth remote operation on jibs, gimbals, and beyond.
Rota Tray is compatibleRota Tray is compatible with all Arri standard matte boxes including Bright Tangerine, Arri, Chrosziel, Wooden Camera, and many others.

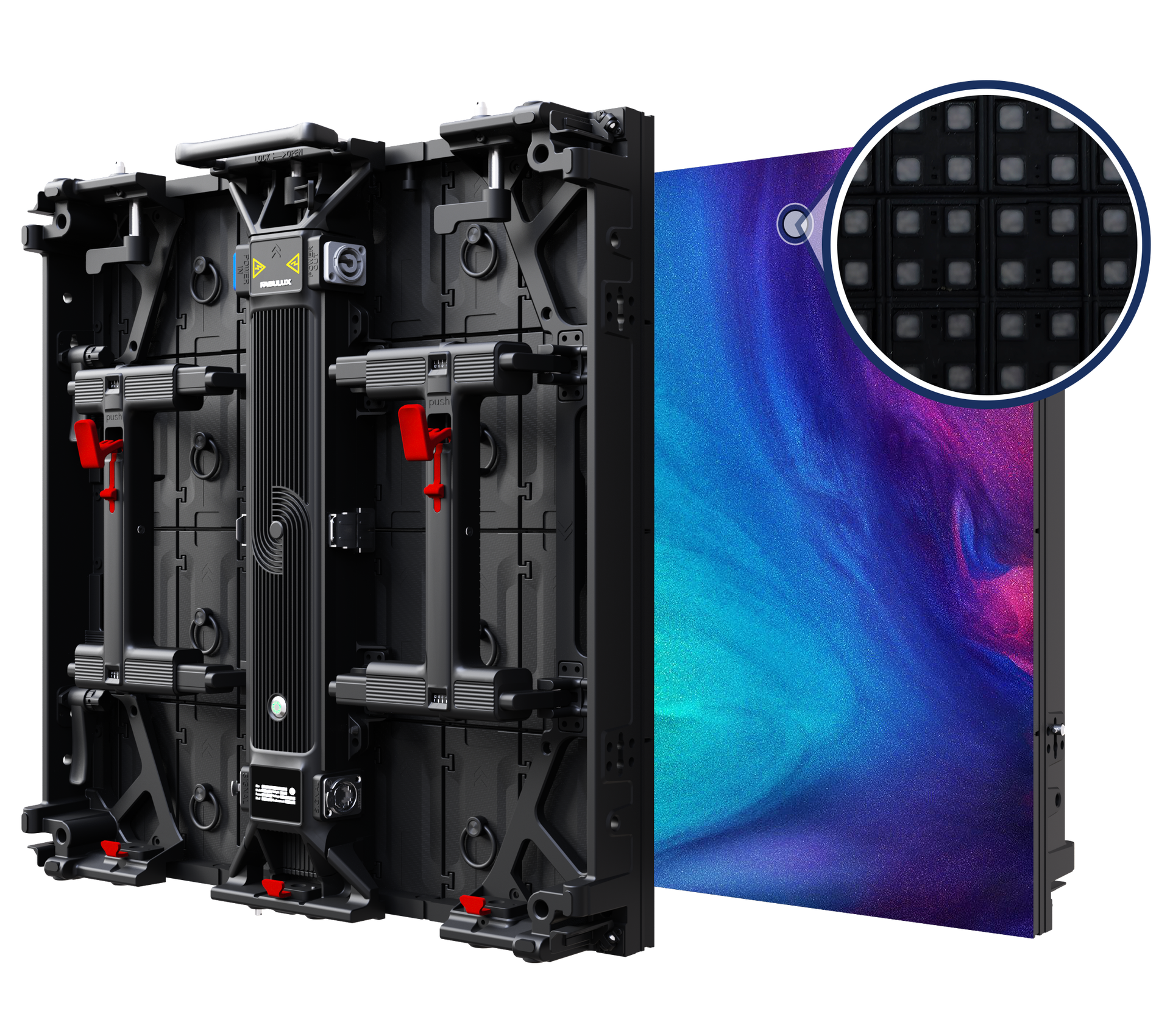

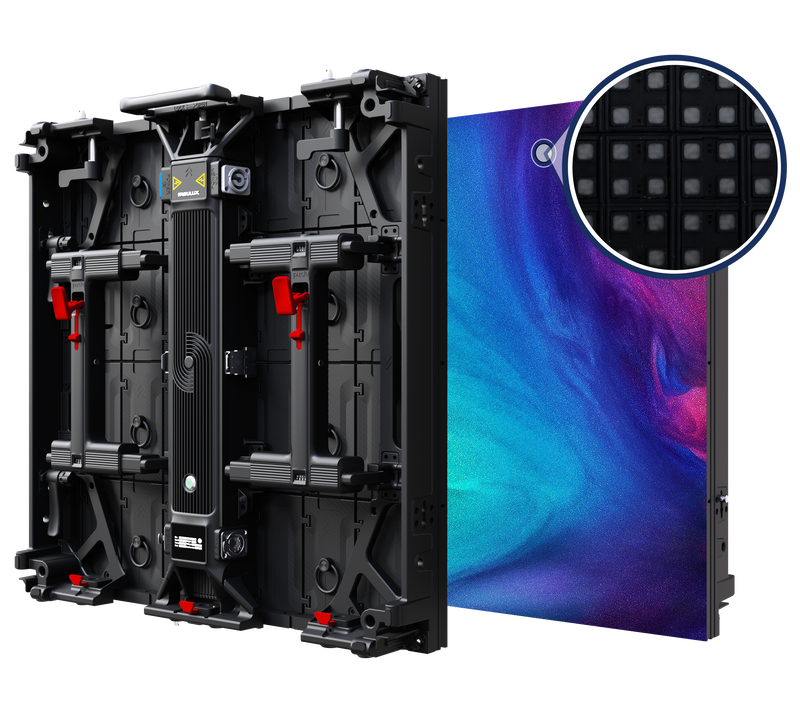

FC Panel Kits

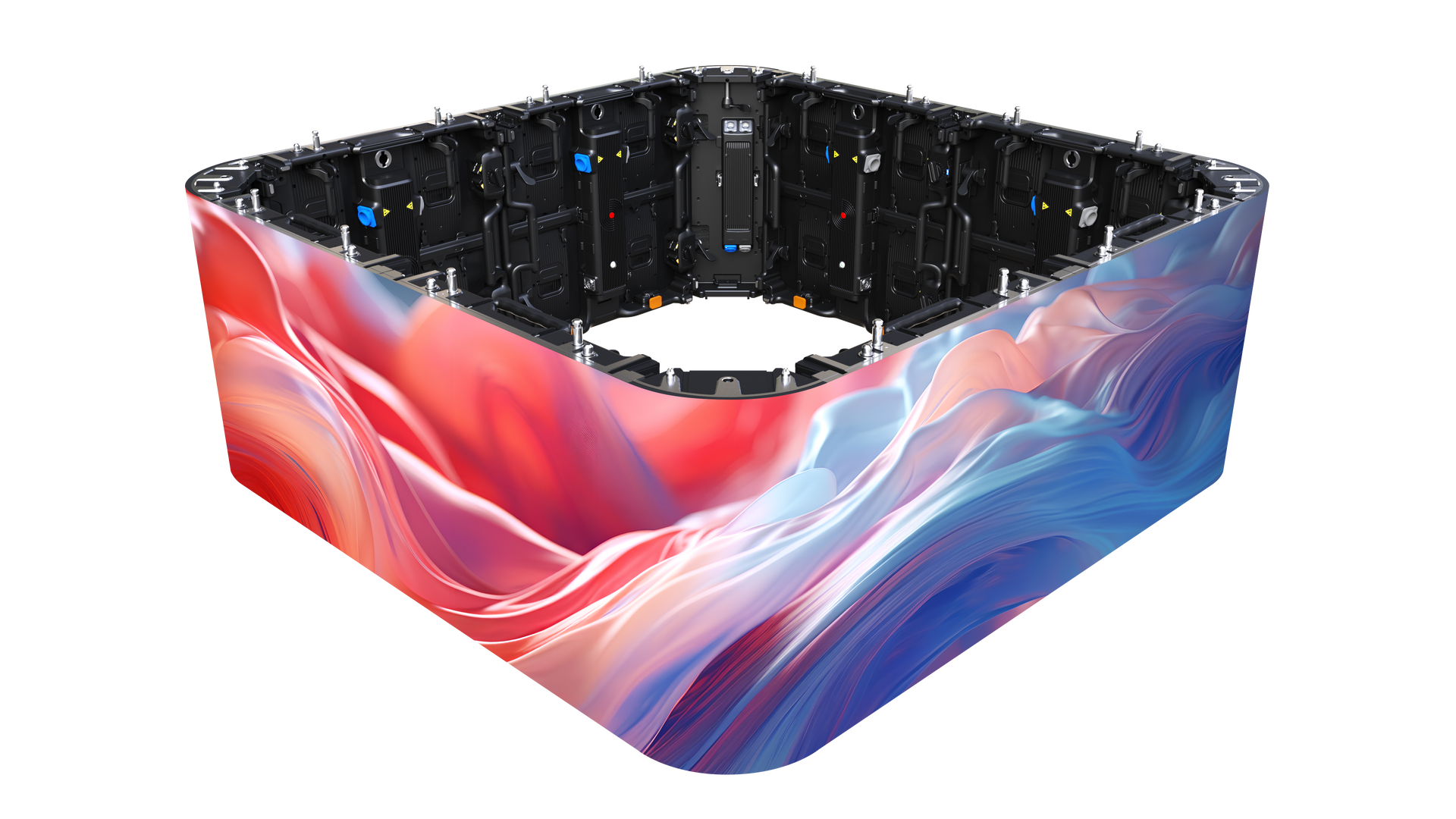

Fabulux FC Series panels offer a versatile and budget-friendly solution for virtual production, designed to deliver reliable performance without compromising creative potential. Supporting up to 45 degrees of curvature, they enable more dynamic, immersive environments—ideal for building sweeping LED volumes and unique stage designs. With strong color consistency and dependable on-camera results, FC panels are well-suited for studios, broadcast sets, and content creators looking to enter or scale virtual production efficiently.
Engineered for flexibility and ease of deployment, FC Series panels are available in Fabulux virtual production kits, which help simplify setup by outlining required system components from trusted third-party vendors. Available in both floor-mounted and hanging truss configurations, these solutions make it easier than ever to achieve professional-grade virtual production on a more accessible budget.
Built to last with high quality anodized aluminum frame.
Complete control with dual 0.8 mod gears for fast rotation in any camera configuration including remote with a focus motor
A military-spec circular polarizer engineered for premium performance— delivering efficiency and coatings well beyond common options like the Schneider True-Pol or Tiffen Ultra Pol.
Extra Large 138mm filterallows for use of wide angle lenses for maximum compatibility.
Dual wheel control lets you adjust with a simple touch—just drop the 4x5.65 tray into your matte box and spin from either side of the camera. For advanced setups, the built-in 0.8 gears connect effortlessly to a focus motor for smooth remote operation on jibs, gimbals, and beyond.
Rota Tray is compatibleRota Tray is compatible with all Arri standard matte boxes including Bright Tangerine, Arri, Chrosziel, Wooden Camera, and many others.
Panel Specifications
| Model (500mm*500mm) | Working Distance | Resolution / FPS Refresh | Processor |
|---|---|---|---|
| Alpha 2.6mm | 12+ feet | 192x192 - 240 frames/second | Novastar (1/16 scan) |
| Alpha 1.9mm | 6+ Feet | 256x256 - 240 frames/second | Novastar (1/16 scan) |
| Alpha 1.9mm | 6+ Feet | 256x256 - 240 frames/second | Brompton (1/8 scan) |
| FC 2.6mm | 12+ feet | 192x192 - 240 frames/second | Novastar (1/16 scan) |
| FC 1.9mm | 6+ feet | 256x256 - 240 frames/second | Novastar (1/16 scan) |
Kit Specifications
| Kit | Wall Sizes | Resolution / FPS Refresh | Processor |
|---|---|---|---|
| Alpha 2.6mm | 8'x8', 13'x13' or Custom | 192x192 - 240 frames/second | Novastar (1/16 scan) |
| Alpha 1.9mm | 8'x8', 13'x13' or Custom | 256x256 - 240 frames/second | Novastar (1/16 scan) |
| Alpha 1.9mm | 8'x8', 13'x13' or Custom | 256x256 - 240 frames/second | Brompton (1/8 scan) |
| FC 2.6mm | 8'x8', 13'x13' or Custom | 192x192 - 240 frames/second | Novastar (1/16 scan) |
| FC 1.9mm | 6+ feet | 256x256 - 240 frames/second | Novastar (1/16 scan) |
Frequently Asked Questions
Yes, you can buy the kits in 8'x8' (25-panel) or 13'x13' (64-panel) or we can build a custom size. Most people choose a kit as a starting point and add the necessary number of panels to reach a larger custom size.
Fabulux kits are available with either the more affordable Novastar or premimum Brompton controlers.
Novastar is sufficient for most basic XR applications. Larger walls and those requiring tight control of color parameters should choose the Brompton controller ecosystem.
Panels can be upgraded later from Novastar by installing a new receiver card on the panel.
All kits include panels, mounting hardware for hanging on a truss or floor stack, all data and power cables, rolling cases and installation documentation.
Kits DO NOT include the LED Processor, workstation, camera tracking, genlock or software. Guidance on these systems is available from a systems integrator and our suggestions per each application.
Set up is available from systmes integrators and dealers. Factory direct technician support/installation is available for an extra fee.
