The Revar Cine Rota-Tray and professional polarizers provide precise, repeatable control over reflections, glare, color saturation, and contrast directly in camera. Designed for professional matte boxes, the system combines high-quality optical glass with a durable geared tray that allows the polarizer to be rotated smoothly while remaining securely mounted.

Often called a “Rota Pola,” the Rota-Tray holds a large, unmounted circular polarizer inside a standard rectangular filter tray. Its 138mm glass diameter provides broad image coverage for compatibility with many wide-angle lenses. Dual control wheels allow the filter to be adjusted quickly from either side of the camera, while integrated 0.8 MOD gears permit connection to a focus motor for remote rotation on cranes, jibs, gimbals, car rigs, and other configurations where the camera is difficult to reach.

Revar Cine circular polarizers reduce reflections from glass, water, painted surfaces, and other nonmetallic materials. They can also deepen blue skies, improve color saturation, and increase apparent contrast without relying on post-production correction. The high-efficiency polarizing material and optical coatings are engineered for professional image quality, neutral color rendition, and dependable performance.

The Rota-Tray is designed and manufactured in the USA using an anodized, aircraft-grade aluminum frame and durable polymer components. Versions are available for standard 4 × 5.65-inch and 6.6 × 6.6-inch matte-box systems.

Available Options:

• 4 × 5.65-inch Rota-Tray with 138mm circular polarizer

• 6.6 × 6.6-inch Rota-Tray with 162mm circular polarizer

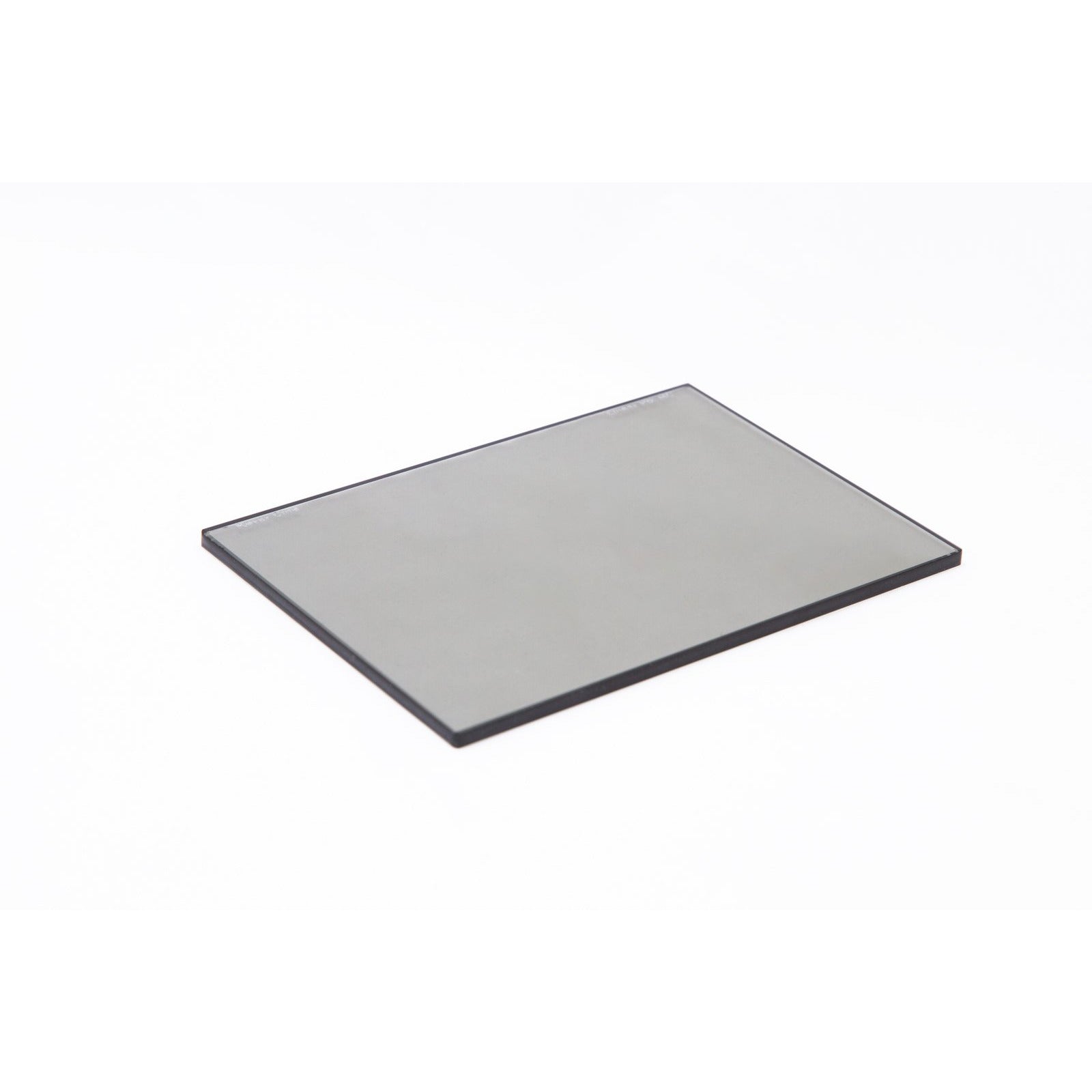

• 4 × 5.65-inch multicoated linear polarizer

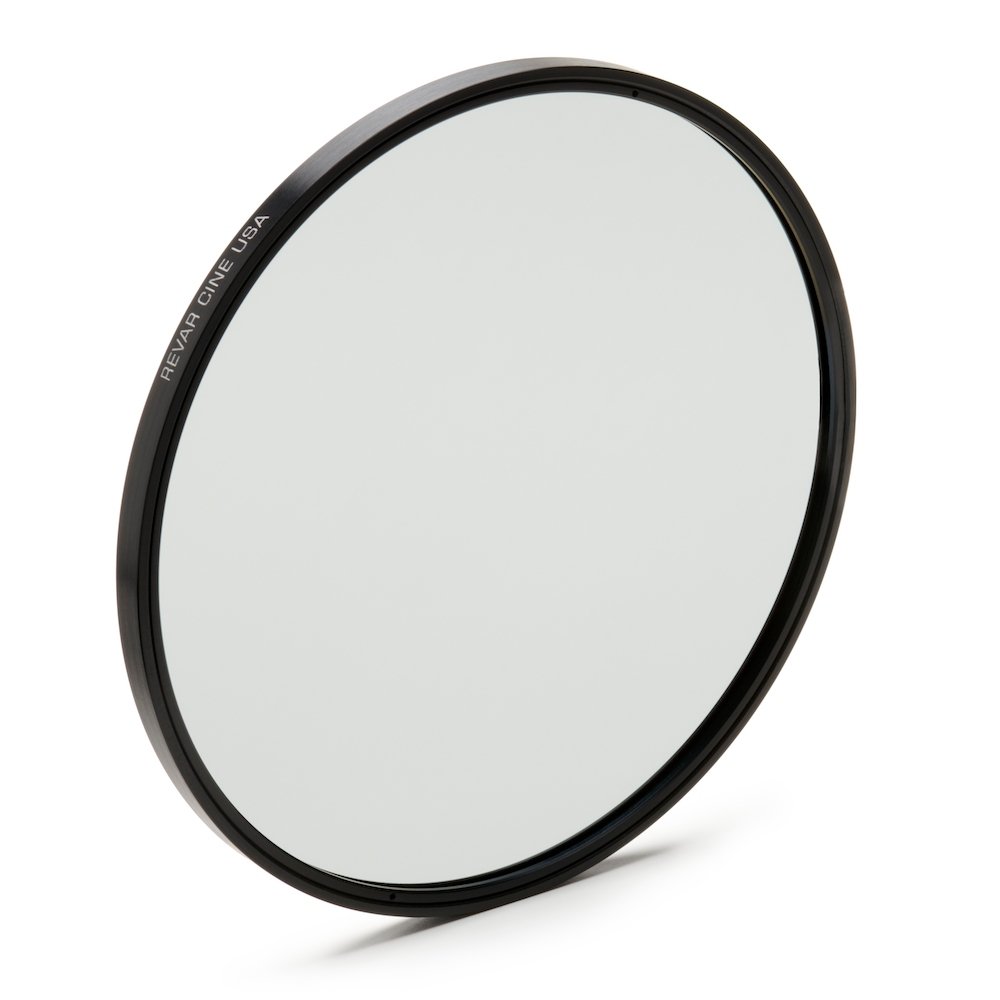

• 138mm circular polarizer without tray

• 4 × 5.65-inch Rota-Tray without glass


The Rota-Tray accepts compatible Revar Cine and Schneider unmounted circular polarizers. It is not compatible with Tiffen unmounted polarizers because the glass diameter differs.

Select the required polarizer and tray configuration from the product menu before ordering.

4x5.65/138mm Rota Tray:

Height (post to bottom): 7.2" (182.88mm)

Height (filter frame only): 5.413" (137.49mm)

Width: 5.895" (149.73mm)

Depth: 0.236" (6mm)

Key Features:

• Reduces glare and unwanted reflections

• Improves color saturation and apparent contrast

• Deepens blue skies and improves cloud separation

• Large polarizer diameter supports wide-angle lens coverage

• Dual control wheels provide access from either side of the camera

• Integrated 0.8 MOD gears support remote motorized rotation

• Anodized aircraft-grade aluminum construction

• Designed and manufactured in the USA

• Compatible with many ARRI-standard matte-box tray slots

• Replaceable polarizing glass


Matte Box Compatibility

4x5.65/138mm Rota-Tray

Compatible:

• Bright Tangerine Kick
• Arri LMB 4x5
• Arri LMB-25
• Arri LMB-15
• Arri LMB-5
• Tilta T12

NOT Compatible:

• Bright Tangerine VIV
• Bright Tangerine Misfit Atom (see 138mm or 4x5.65 fixed polarizers)
• Tilta T-04

6.6x6.6 Rota-Tray:

Compatible:

• Arri LMB 6x6
• Arri LMB-6
• Arri SMB-1
• Bright Tangerine Misfit Six
• Bright Tangerine Strummer DNA 6.6″
• Vocas MB-600 series

138mm Circular Polarizer:

• Bright Tangerine Misfit Atom
• Any matte box with 138mm rear stage or adapter

4x5.65 Linear Polarizer:

• Arri rotating 4x5.65 trays
• Bright Tangerine Kick rotating tray
• All 4x5.65 matte boxes (no rotation unless tray allows it)
