Revar Cine
Revar Cine 4x5.65 Linear Polarizer Filter
Description +
The Revar Cine Rota-Tray and professional polarizers provide precise, repeatable control over reflections, glare, color saturation, and contrast directly in camera. Designed for professional matte boxes, the system combines high-quality optical glass with a durable geared tray that allows the polarizer to be rotated smoothly while remaining securely mounted.

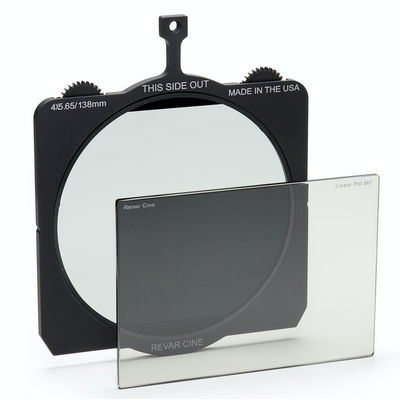

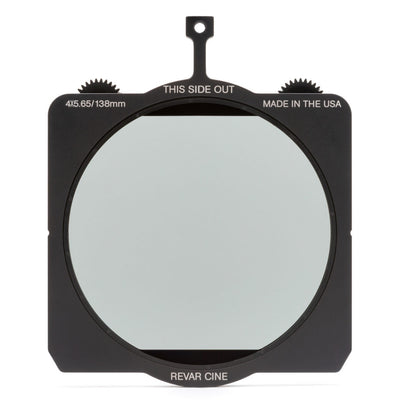

Often called a “Rota Pola,” the Rota-Tray holds a large, unmounted circular polarizer inside a standard rectangular filter tray. Its 138mm glass diameter provides broad image coverage for compatibility with many wide-angle lenses. Dual control wheels allow the filter to be adjusted quickly from either side of the camera, while integrated 0.8 MOD gears permit connection to a focus motor for remote rotation on cranes, jibs, gimbals, car rigs, and other configurations where the camera is difficult to reach.
Revar Cine circular polarizers reduce reflections from glass, water, painted surfaces, and other nonmetallic materials. They can also deepen blue skies, improve color saturation, and increase apparent contrast without relying on post-production correction. The high-efficiency polarizing material and optical coatings are engineered for professional image quality, neutral color rendition, and dependable performance.
The Rota-Tray is designed and manufactured in the USA using an anodized, aircraft-grade aluminum frame and durable polymer components. Versions are available for standard 4 × 5.65-inch and 6.6 × 6.6-inch matte-box systems.
Available Options:
- 4 × 5.65-inch Rota-Tray with 138mm circular polarizer
- 6.6 × 6.6-inch Rota-Tray with 162mm circular polarizer
- 4 × 5.65-inch multicoated linear polarizer
- 138mm circular polarizer without tray
- 4 × 5.65-inch Rota-Tray without glass
The Rota-Tray accepts compatible Revar Cine and Schneider unmounted circular polarizers. It is not compatible with Tiffen unmounted polarizers because the glass diameter differs.
Select the required polarizer and tray configuration from the product menu before ordering.
Specs +
4x5.65/138mm Rota Tray:
Height (post to bottom): 7.2" (182.88mm)
Height (filter frame only): 5.413" (137.49mm)
Width: 5.895" (149.73mm)
Depth: 0.236" (6mm)
Key Features +
Key Features:
- Reduces glare and unwanted reflections
- Improves color saturation and apparent contrast
- Deepens blue skies and improves cloud separation
- Large polarizer diameter supports wide-angle lens coverage
- Dual control wheels provide access from either side of the camera
- Integrated 0.8 MOD gears support remote motorized rotation
- Anodized aircraft-grade aluminum construction
- Designed and manufactured in the USA
- Compatible with many ARRI-standard matte-box tray slots
- Replaceable polarizing glass
Compatibility +
Matte Box Compatibility
4x5.65/138mm Rota-Tray
Compatible:
- Bright Tangerine Kick
- Arri LMB 4x5
- Arri LMB-25
- Arri LMB-15
- Arri LMB-5
- Tilta T12
NOT Compatible:
- Bright Tangerine VIV
- Bright Tangerine Misfit Atom (see 138mm or 4x5.65 fixed polarizers)
- Tilta T-04
6.6x6.6 Rota-Tray:
Compatible:
- Arri LMB 6x6
- Arri LMB-6
- Arri SMB-1
- Bright Tangerine Misfit Six
- Bright Tangerine Strummer DNA 6.6″
- Vocas MB-600 series
138mm Circular Polarizer:
- Bright Tangerine Misfit Atom
- Any matte box with 138mm rear stage or adapter
4x5.65 Linear Polarizer:
- Arri rotating 4x5.65 trays
- Bright Tangerine Kick rotating tray
- All 4x5.65 matte boxes (no rotation unless tray allows it)
Choose options
Get the highlights
Fine-tune reflections without removing the filter. Dual control wheels provide access from either side, while 0.8 MOD gears support compatible focus motors for remote adjustment. Choose the Rota Tray format that matches your matte box, and check compatibility before ordering.
Built to last with high quality anodized aluminum frame.
Complete control with dual 0.8 mod gears for fast rotation in any camera configuration including remote with a focus motor
Circular polarization helps control reflections and glare while preserving natural color.
Extra Large 138mm filter allows for use of wide angle lenses for maximum compatibility.
Dual wheel control lets you adjust with a simple touch—just drop the 4x5.65 tray into your matte box and spin from either side of the camera. For advanced setups, the built-in 0.8 gears connect effortlessly to a focus motor for smooth remote operation on jibs, gimbals, and beyond.
Designed for compatible cinema matte boxes. Check the model-specific compatibility table and available clearance before ordering.
Matte Box Compatability
| Manufacturer | Model | Compatability | |
|---|---|---|---|
| Arri | LMB 4x5 YES | ||
| Bright Tangerine | Kick | YES | |
| Bright Tangerine | VIV | NO | |
| Bright Tangerine | Misfit Atom + Pola | NO - See our 138mm Circular Polarizer | |
| Tilta | T12 | YES | |
| Tilta | T04 | NO - Non-standard tray width | |
| OConnor | O-Box | YES | |
| Wooden Camera | UMB-1 | YES | |
| Wooden Camera | Zip Box Pro | NO - See our 4.5” Circular Polarizer | |
| Chrosziel | 400 Series | YES |
Frequently Asked Questions
Yes, you can use a Schneider Unmounted True-Pol. The Rota Tray is not compatible with Tiffen unmounted filters due to the different diameter of the glass.
We also offer the Rota Tray in 6.6x6.6 size. For matte boxes with no filter tray, check out our 138mm Pola+ Circular Polarizer.
Tilta uses a non-standard tray width in the T04 matte box. Their T12 matte box does follow standards so it is compatible.
